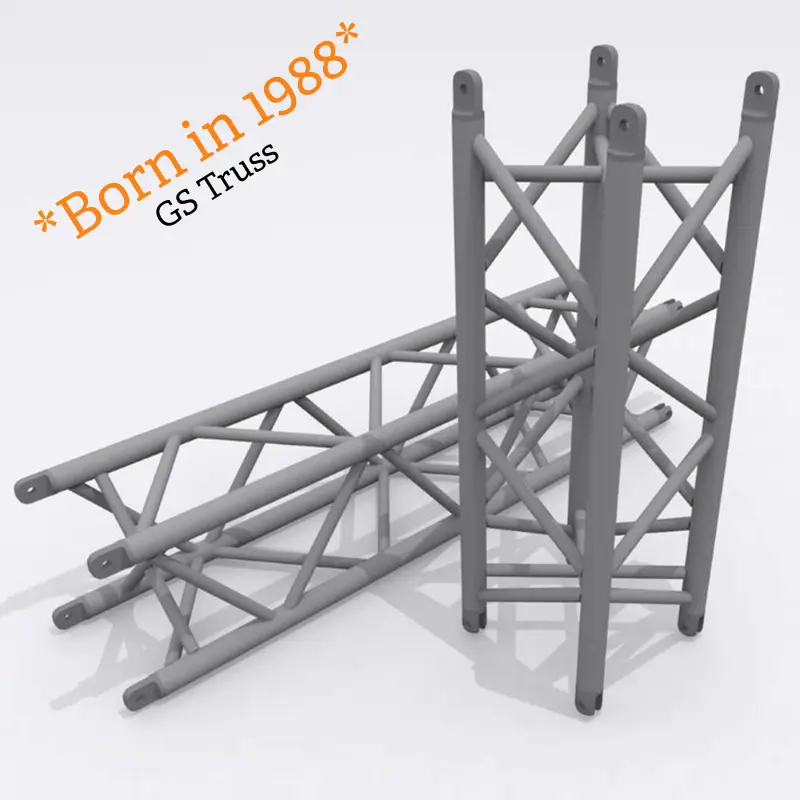

GS Truss combines the lateral strength of Mini beam with high vertical loading and represents an compact engineering solution to lighting truss, where larger load capacities are needed in a small size of aluminium truss for the entertainment, event and presentation industry. GS Truss forms the mast section of the ever popular GS Tower.
Designed to the latest Eurocodes and manufactured to EN1090-1, this product combines high comparative load capacities, low self-weight, and comes at a competitive price. All this whilst analysing the most common slinging / support methods on the truss has determined an ‘engineered’ product that can utilise the most modern manufacturing techniques.
Peace of Mind.
You also have the peace of mind that GS Truss loading charts have been calculated to EN17115 in order to give you the peace of mind that your lighting truss is still fit for purpose even after a few scratches and dents. What is the Frequent Use Factor?
The GS Truss range features a variety of corners, swivels, hinges and base plates that utilize fork-end connectors for quick and easy assembly. The brace patterns are specifically engineered to withstand the loads and forces associated with common slinging and support methods. The extrusions used in the construction of these trusses are custom-designed by Total Solutions Group, ensuring enhanced structural effectiveness and streamlined manufacturing processes.
Features at a glance
Square
347 x 347 mm
2207 kg's UDL at 8 m
TP or GP pins & R3 Clips
Truss – Understanding GS Truss
Quad, also known as box or square truss, is a robust structural framework that’s foundational in both construction and entertainment industries. Characterized by its four-tube square design, trusses are engineered to handle substantial weight loads, making them indispensable for large-scale projects.
Key Features
- Superior Load Capacity: The GS stands out as the strongest truss type, capable of supporting heavy equipment and spanning longer distances, without intermediate or lateral supports.
- Versatile Applications: Its strength and stability make it an excellent choice for large builds, including stages, theatres, and exhibitions.
- Orientation Simplicity: The square design ensures uniformity, which eliminates apex or directional issues that can complicate setup and alignment.
Practical Uses
- Lighting & Displays: The four-tube construction provides extensive surface area for mounting lights, screens, and other display elements securely.
- Structural Reliability: Thanks to its load-bearing capabilities, quad truss is often used in scenarios where safety and durability are paramount.
In summary, GS truss is favoured for its unmatched strength, versatility, and ease of use, positioning it as a top choice for professionals seeking reliable support structures in dynamic environments.
What Can You Use GS Truss For?
Am aluminium truss is a versatile structural element widely recognized for its strength and extensive clear span capabilities. This makes it a top choice for various applications in different industries. In addition GS Truss is ideally suited to tower applications and forms part of the GS Tower range
Exhibition Stands; In the world of exhibitions, aluminium truss serve’s as the backbone for professional stands. Their robust design supports intricate displays and even entire booths, helping brands make a strong impression on potential clients. Exhibitions
Stage Roof Systems; For concerts and events, GS truss and GS Tower is ideal for constructing stage roof systems. Their durability ensures that lighting, speakers, and other equipment are safely supported, allowing for a dynamic performance environment. Roofing Systems
Architectural Lighting Displays; Designers often use aluminium trusses in architectural lighting projects. These trusses allow for creative lighting setups that enhance buildings’ aesthetics, making them a favourite in urban and commercial design.
Sport Events; In sports, temporary structures like bay systems often rely on aluminium truss. They provide a sturdy framework for everything from garages to spectator stands, ensuring both functionality and safety. Sports + Ceremonies
Fashion Shows; On the catwalk, GS truss form the backbone of fashion show structures, supporting everything from overhead lighting to intricate stage designs.
Gallery and Museum Exhibits; GS truss is also found in galleries and museums, where they support displays that require both strength and subtlety. These trusses help create immersive environments that captivate visitors.
Theatre Lighting and More; In theatre’s, quad trusses are essential for complex lighting arrangements. They ensure that lights are precisely positioned to enhance the overall performance, making them a staple in stage design. Theatre Solutions
Temporary Structures: Outdoor festivals and events often rely on GS truss and GS Tower for temporary frameworks. They’re used for roofing systems over stages to ensure stability under varied weather conditions.
In essence, quad trusses are a go-to solution for anyone needing a reliable, adaptable structure for events, displays, or design projects.
Load/Span Table
*Third and Quarter point loads are displayed as a total load and NOT individual point loads*
Cantilever Load Table
