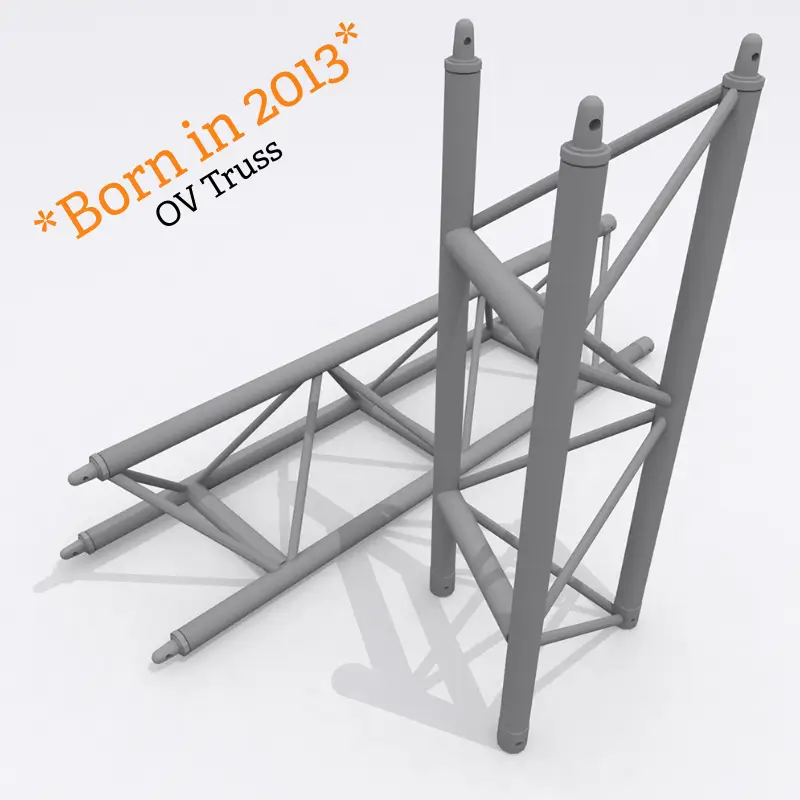

OV40 Tri Truss
OV40 Tri Truss
OV40 triangular represents an innovative engineering solution to lighting structures, a common size of product for the entertainment, event, and presentation industry and compliments the rest of the OV family.
Designed to the latest Eurocodes and manufactured to EN1090-1, the product combines high comparative load capacities, low self-weight, and comes at a competitive price. All this whilst analysing the most common slinging/support methods on the structure has determined an ‘engineered’ product that can utilise the most modern manufacturing techniques.
Peace of Mind
You also have the peace of mind that these loading charts have been calculated to EN17115 in order to ensure that your lighting framework remains fit for purpose even after a few scratches and dents. What is the Frequent Use Factor?
The OV range features a variety of square, triangular, and flat lighting modules that utilize conical connectors for quick and easy assembly. The brace patterns are specifically engineered to withstand the loads and forces associated with common slinging and support methods. The extrusions used in the construction of these lighting modules are custom-designed by Total Solutions Group, ensuring enhanced structural effectiveness and streamlined manufacturing processes.
Advanced Design
Additionally, the OV40 series incorporates advanced design principles that not only enhance their structural integrity but also facilitate faster and more efficient assembly and disassembly. This makes them ideal for quick setups and teardowns often required in dynamic event environments. The attention to durability and reliability ensures that these structures can be reused multiple times without compromising safety or performance, offering long-term value to users.
In summary, the OV40 range is a standout choice for professionals in the live events industry, combining cutting-edge engineering, robust design, and aesthetic appeal to provide a versatile and dependable solution for various applications.
Features at a glance
Triangular
400 mm
660 kg's UDL at 9 m
TFC pins & R3 Clips
Truss – Understanding OV40 Tri
Tri truss, also known as triangular truss, is a robust structural framework that’s foundational in both construction and entertainment industries. Characterized by its three-tube triangular design, trusses are engineered to handle substantial weight loads, making them indispensable for large-scale projects.
Key Features
- Superior Load Capacity: The triangular design stands out as one of the strongest truss types, capable of supporting heavy equipment and spanning longer distances without intermediate or lateral supports.
- Versatile Applications: Its strength and stability make it an excellent choice for large builds, including stages, theatres, and exhibitions.
- Orientation Simplicity: The triangular design ensures uniformity, which eliminates apex or directional issues that can complicate setup and alignment.
Practical Uses
- Lighting & Displays: The three-tube construction provides extensive surface area for mounting lights, screens, and other display elements securely to a single cord, which quite often is advantageous for both practical and aesthetic reasons.
- Structural Reliability: Thanks to its load-bearing capabilities, tri truss is often used in scenarios where safety and durability are paramount.
In summary, tri truss is favoured for its ability to hang fixtures, centrally, without the need of other accessories. Versatility, and ease of use, positioning it as a top choice for professionals seeking reliable support structures in dynamic environments.
What Can You Use OV40 Tri For?
This product is a versatile structural element widely recognized for its strength and extensive clear span capabilities. This makes it a top choice for various applications in different industries.
- Exhibition Stands: In the world of exhibitions, triangular trusses serve as the backbone for professional stands. Their robust design supports intricate displays and even entire booths, helping brands make a strong impression on potential clients.
- Stage Roof Systems: For concerts and events, these products are ideal for constructing stage roof systems. Their durability ensures that lighting, speakers, and other equipment are safely supported, allowing for a dynamic performance environment.
- Architectural Lighting Displays: Designers often use OV40 in architectural lighting projects. These modules allow for creative lighting setups that enhance buildings’ aesthetics, making them a favourite in urban and commercial design.
- Motorsport Events: In motorsports, temporary structures like bay systems often rely on these products. They provide a sturdy framework for everything from garages to spectator stands, ensuring both functionality and safety.
- Fashion Shows: On the catwalk, TSG products form the backbone of fashion show structures, supporting everything from overhead lighting to intricate stage designs.
- Gallery and Museum Exhibits: OV40 is also found in galleries and museums, where they support displays that require both strength and subtlety. These systems help create immersive environments that captivate visitors.
- Theatre Lighting and More: In theatres, the products are essential for complex lighting arrangements. They ensure that lights are precisely positioned to enhance the overall performance, making them a staple in stage design.
- Temporary Structures: Outdoor festivals and events often rely on TSG products for temporary frameworks. They’re used for roofing systems over stages to ensure stability under varied weather conditions.
In essence, triangular trusses are a go-to solution for anyone needing a reliable, adaptable structure for events, displays, or design projects.
Load/Span Table
*Third and Quarter point loads are displayed as a total load and NOT individual point loads*
| Apex Down | ||||||
|---|---|---|---|---|---|---|
| Span (m) | 3 | 6 | 9 | 12 | 15 | 18 |
| UDL kg | 1640 | 1030 | 660 | 470 | 350 | 260 |
| UDK kN | 16.4 | 10.3 | 6.6 | 4.7 | 3.5 | 2.6 |
| Theoretical deflection (mm) | 3 | 17 | 37 | 62 | 90 | 117 |
| Central Point kg | 1020 | 500 | 320 | 220 | 160 | 120 |
| Central Point kN | 10.2 | 5 | 3.2 | 2.2 | 1.6 | 1.2 |
| Theoretical deflection (mm) | 3 | 13 | 28 | 48 | 69 | 89 |
| Third Points kg | 1080 | 720 | 460 | 330 | 240 | 180 |
| Third Points kN | 10.8 | 7.2 | 4.6 | 3.3 | 2.4 | 1.8 |
| Theoretical deflection (mm) | 3 | 16 | 35 | 59 | 85 | 109 |
| Quarter Points kg | 1080 | 760 | 490 | 340 | 250 | 190 |
| Quarter Points kN | 10.8 | 7.6 | 4.9 | 3.4 | 2.5 | 1.9 |
| Theoretical deflection (mm) | 3 | 16 | 34 | 58 | 84 | 108 |
| Apex Up | ||||||
| UDL kg | 1640 | 1030 | 660 | 470 | 350 | 260 |
| UDK kN | 16.4 | 10.3 | 6.6 | 4.7 | 3.5 | 2.6 |
| Theoretical deflection (mm) | 3 | 17 | 37 | 62 | 90 | 117 |
| Central Point kg | 1020 | 500 | 320 | 220 | 160 | 120 |
| Central Point kN | 10.2 | 5 | 3.2 | 2.2 | 1.6 | 1.2 |
| Theoretical deflection (mm) | 3 | 13 | 28 | 48 | 69 | 89 |
| Third Points kg | 1080 | 720 | 460 | 330 | 240 | 180 |
| Third Points kN | 10.8 | 7.2 | 4.6 | 3.3 | 2.4 | 1.8 |
| Theoretical deflection (mm) | 3 | 16 | 35 | 59 | 85 | 109 |
| Quarter Points kg | 1080 | 760 | 490 | 340 | 250 | 190 |
| Quarter Points kN | 10.8 | 7.6 | 4.9 | 3.4 | 2.5 | 1.9 |
| Theoretical deflection (mm) | 3 | 16 | 34 | 58 | 84 | 108 |
| Bottom Braces | ||||||
| Point loaded at each bottom brace kg | 270 | 85 | 35 | 19 | 11 | 7 |
| Point loaded at each bottom brace kN | 2.7 | 0.85 | 0.35 | 0.2 | 0.1 | 0.07 |
| Theoretical deflection (mm) | 3 | 17 | 37 | 62 | 90 | 117 |
| Total load at bottom braces kg | 1620 | 1020 | 630 | 560 | 330 | 252 |
| Total load at bottom braces kN | 16.2 | 10.2 | 6.3 | 4.8 | 3 | 1.8 |
| Theoretical deflection (mm) | 3 | 17 | 37 | 62 | 90 | 117 |
Cantilever Load Table
| Apex Down | |||||||
|---|---|---|---|---|---|---|---|
| UDL kN | UDL kg | Edge point load kN | Edge point load kg | Central point load kN | Central point load kg | ||
| Span (3m) | 4.8 | 480 | 2.4 | 240 | 4.7 | 470 | |
| Deflection (mm) | 10.2 | 10.2 | 12 | 12 | 8.2 | 8.2 | |
| Apex Up | |||||||
| Span (3m) | 4.8 | 480 | 2.4 | 240 | 4.7 | 470 | |
| Deflection (mm) | 10.2 | 10.2 | 12 | 12 | 8.2 | 8.2 | |
Item Codes, Weights and Dimensions
| Item Code | Description | Dimensions | Weight | |
|---|---|---|---|---|
| OV40T-025 | OV' Truss, 40 cm Tri, 0.25 m section | 250 x 400 x 353 mm | 2.6 kg | |
| OV40T-050 | OV' Truss, 40 cm Tri, 0.5 m section | 500 x 400 x 353 mm | 3.5 kg | |
| OV40T-100 | OV' Truss, 40 cm Tri, 1 m section | 1000 x 400 x 353 mm | 6 kg | |
| OV40T-200 | OV' Truss, 40 cm Tri, 2 m section | 2000 x 400 x 353 mm | 11.2 kg | |
| OV40T-300 | OV' Truss, 40 cm Tri, 3 m section | 3000 x 400 x 353 mm | 16.3 kg | |
| OV40T-400 | OV' Truss, 40 cm Tri, 4 m section | 4000 x 400 x 353 mm | 21.3 kg | |
| OV40T-90 | OV' Truss, 40 cm Tri, 90 deg corner | 500 x 500 x 353 mm | 5.8 kg | |
| OV40T-3W | OV' Truss, 40 cm Tri, 3 Way Horz. Corner | 600 x 500 x 353 mm | 6.9 kg | |
| OV40T-4W | OV' Truss, 40 cm Tri, 4 Way Horz. Corner | 600 x 600 x 353 mm | 8 kg | |
| OV40T-GPC | OV' Truss, 40 cm Tri, Goal Post Corner | 500 x 500 x 353 mm | 5.7 kg | |
| OV40T-FC100 | OV' Truss, 40 cm Tri, Female bolt-on Connector - 100 mm | 100 x 48 x 48 mm | 0.4 kg | |
| OV40T-MC100 | OV' Truss, 40 cm Tri, Male bolt-on Connector 100 mm | 100 x 48 x 48 mm | 0.6 kg | |
| OV40T-BP | OV' Truss, 40 cm Tri, Ali Base Plate, 50 cm Sq. No Conns. | 600 x 600 x 8 mm | 5 kg | |
| OV40T-TPB | OV' Truss, 40 cm Tri, Truss Pickup Beam - 1000 kg's | 422 x 170 x 65 mm | 5.2 kg |
