Super Beam Truss
Super Beam Truss

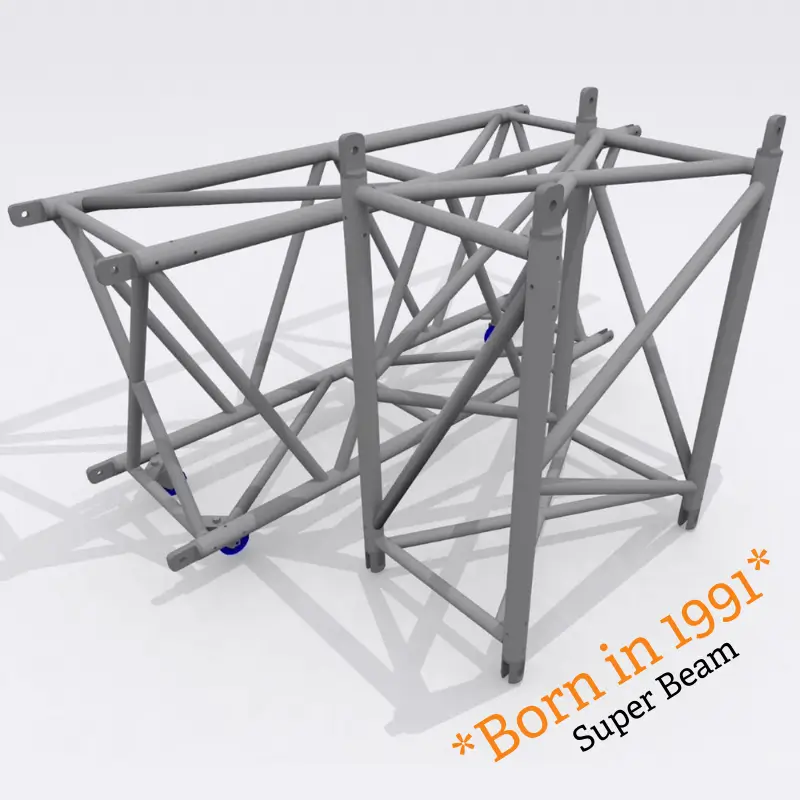

Super beam is a heavy-duty quad truss designed to accommodate capacities between Slick Maxi Beam and Slick Mega Beam. The truss is manufactured from high-grade aluminium alloy 6082-T6 and uses a 60mm O/D main tube in conjunction with Slick’s fork end jointing system making it extremely quick and easy to put together.
Key Features
- Material and Construction: Made from durable aluminium alloy 6082-T6, Super Beam assures strength and longevity. The use of 60mm O/D main tubes offers robust support for various applications.
- Versatile Options: Super Beam comes in a wide variety of standard lengths, choose from standard section lengths of 1.0Mt through to 5Mt, with options for castors, bottom bracing, or pre-rigging with a drop-down mechanism. This flexibility makes the Super Beam adaptable to a wide range of setups.
- Load Capacity and Span: Capable of supporting large loads, Super Beam can be loaded to 4,580kg over an 18-meter span. This makes it ideal for outdoor roof systems requiring significant strength and stability.
- Manufacturer Details: We are an EN1090, ISO9001, and JOSCAR certified UK manufacturer, adhering to strict quality standards. We operate within the global events technology industry.
Frequent use Factor built in?
You also have the peace of mind that all structural engineering for the Light Duty lighting truss has been calculated to EN17115 in order to give you the peace of mind that your staging is still fit for purpose even after a few scratches and dents. For further details see our article here;
Features at a glance
Rectangular
609 x 914 mm
7145 kg's UDL at 12 m
Fork End : 5TTP pins & R4 Clips
Typical Applications for the Super Beam Truss System
The system is renowned for its strength to weight ratio, making it an ideal choice for various applications. Here’s where it truly shines:
- Mother grids: Perfect for creating large venue mother grids giving huge load capacity and flexibility. A go to truss system for live event arenas
- Outdoor Roof systems: The key back bone to large outdoor festival roof systems. Capable of supporting roof systems up to 24mt wide for our Pitched style or 30mt as our Compound Arch style
- Lighting Rigging: With the ability to support complex lighting configurations, the system is essential for setting up heavier duty lighting setups in both indoor and outdoor venues.
These applications underscore the Super Beam system’s adaptability, providing reliable support in demanding environments. Whether you’re constructing large scale truss structures or an elaborate lighting scheme, this system is engineered to meet your needs.
Practical Applications
Super Beam is designed for ease of erection and dismantling, ensuring swift setup and takedown. Its large cross-stage spans make it perfect for outdoor events or any situation where robust support is necessary.
Installation and Use
Whether you opt for castors for mobility or a fixed installation, Super Beam’s design facilitates quick assembly and disassembly. This feature is particularly beneficial for events that require rapid transitions or frequent relocations.
By incorporating these details, Super Beam not only matches the technical prowess of its predecessors but also provides a comprehensive solution for modern staging needs.
Accessories
Circles
Hinges and Swivels
Bespoke Lengths
Ladder Sections
Discover a versatile set of accessories designed to enhance your space with both functionality and style. Each component, from the Circles to the Ladder Sections, adds a unique touch to your setup. These accessories can transform your environment, offering both aesthetic appeal and practical utility.
What’s Included and Installation Recommendations
This comprehensive set includes all necessary interconnecting parts to ensure seamless integration. While the set is designed for easy assembly, professional installation is recommended to guarantee the best results and longevity. Expert installation services are available to help you make the most of these components, ensuring each piece is securely and correctly fitted.
By choosing these accessories, you’re not just upgrading your space; you’re investing in quality and reliability. Whether you’re looking to add subtle enhancements or bold statements, this set provides the tools you need to customize your environment effectively.
Product Manufacturing and Delivery Timeline
Wondering about the timeline for getting your product? Typically, you can expect the entire process—from the start of manufacturing to being ready for despatch—to take around six weeks.
Load/Span Table
*Third and Quarter point loads are displayed as a total load and NOT individual point loads*
| Span (m) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UDL kg | 7525 | 7470 | 7414 | 7145 | 5617 | 4580 | 3823 | 3241 | 2777 | 2394 | 2071 | 1793 |
| UDL kN | 75.2 | 74.7 | 74.1 | 71.4 | 56.1 | 45.8 | 38.2 | 32.4 | 27.7 | 23.9 | 20.7 | 17.9 |
| Theoretical Deflection (mm) | 1 | 5 | 16 | 37 | 57 | 80 | 106 | 134 | 163 | 193 | 222 | 250 |
| CPL kg | 6765 | 6710 | 4828 | 3573 | 2808 | 2290 | 1911 | 1621 | 1389 | 1197 | 1036 | 896 |
| CPL kN | 67.6 | 67.1 | 48.2 | 35.7 | 28 | 22.9 | 19.1 | 16.2 | 13.8 | 11.9 | 10.3 | 8.9 |
| Theoretical Deflection (mm) | 1 | 7 | 17 | 30 | 45 | 64 | 85 | 107 | 131 | 155 | 178 | 200 |
| Third Points kg | 6765 | 6710 | 6654 | 5359 | 4213 | 3435 | 2867 | 2431 | 2083 | 1796 | 1554 | 1345 |
| Third Points kN | 67.6 | 67.1 | 66.5 | 53.5 | 42.1 | 34.3 | 28.6 | 24.3 | 20.8 | 17.9 | 15.5 | 13.4 |
| Theoretical Deflection (mm) | 1 | 6 | 20 | 38 | 58 | 82 | 108 | 137 | 167 | 198 | 227 | 256 |
| Quarter Points kg | 6765 | 6710 | 6654 | 5359 | 4213 | 3435 | 2867 | 2431 | 2083 | 1796 | 1554 | 1345 |
| Quarter Points kN | 67.6 | 67.1 | 66.5 | 53.5 | 42.1 | 34.3 | 28.6 | 24.3 | 20.8 | 17.9 | 15.5 | 13.4 |
| Theoretical Deflection (mm) | 1 | 5 | 18 | 35 | 54 | 76 | 101 | 127 | 155 | 184 | 211 | 238 |
Superbeam Cantilever Load
| Span | UDL kN | UDL kg | Edge Point Load kN | Edge Point Load kg | Central Point Load kN | Central Point Load kg |
|---|---|---|---|---|---|---|
| 3m | 42.2 | 4220 | 33.9 | 3390 | 34.7 | 3470 |
| Deflection (mm) | 6.3 | 6.3 | 11.3 | 11.3 | 4.9 | 4.9 |
Item Codes, Weights and Dimensions
| Item Code | Item Description | Dimensions | Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5T10/BB | Superbeam 1 m Section | 1000x917x610 mm | 29 kg | |||||||||
| 5T12/BB | Superbeam 1.2 m Section | 1200x917x610 mm | 31 kg | |||||||||
| 5T20/BB | Superbeam 2 m Section | 2000x917x610 mm | 45 kg | |||||||||
| 5T24/BB | Superbeam 2.4 m Section | 2400x917x610 mm | 48 kg | |||||||||
| 5T30/BB | Superbeam 3 m Section | 3000x917x610 mm | 64 kg | |||||||||
| 5T40/BB | Superbeam 4 m Section | 4000x917x610 mm | 79 kg | |||||||||
| 5T48/BB | Superbeam 4.8 m Section | 4800x917x610 mm | 86 kg | |||||||||
| 5T4W | Superbeam 4 Way Corner | 720x917x720 mm | 42 kg | |||||||||
| 5TSB | Superbeam Sleeve Block GS Tower | 720x917x720 mm | 48 kg | |||||||||
| N0SB | Superbeam Sleeve Block Nova Tower | 892x917x892 mm | 57 kg |
